Sunflower 7610 AND 7630 STRIP-TILL TOOLS

  • Sunflower 7610 AND 7630 STRIP TILL TOOLS

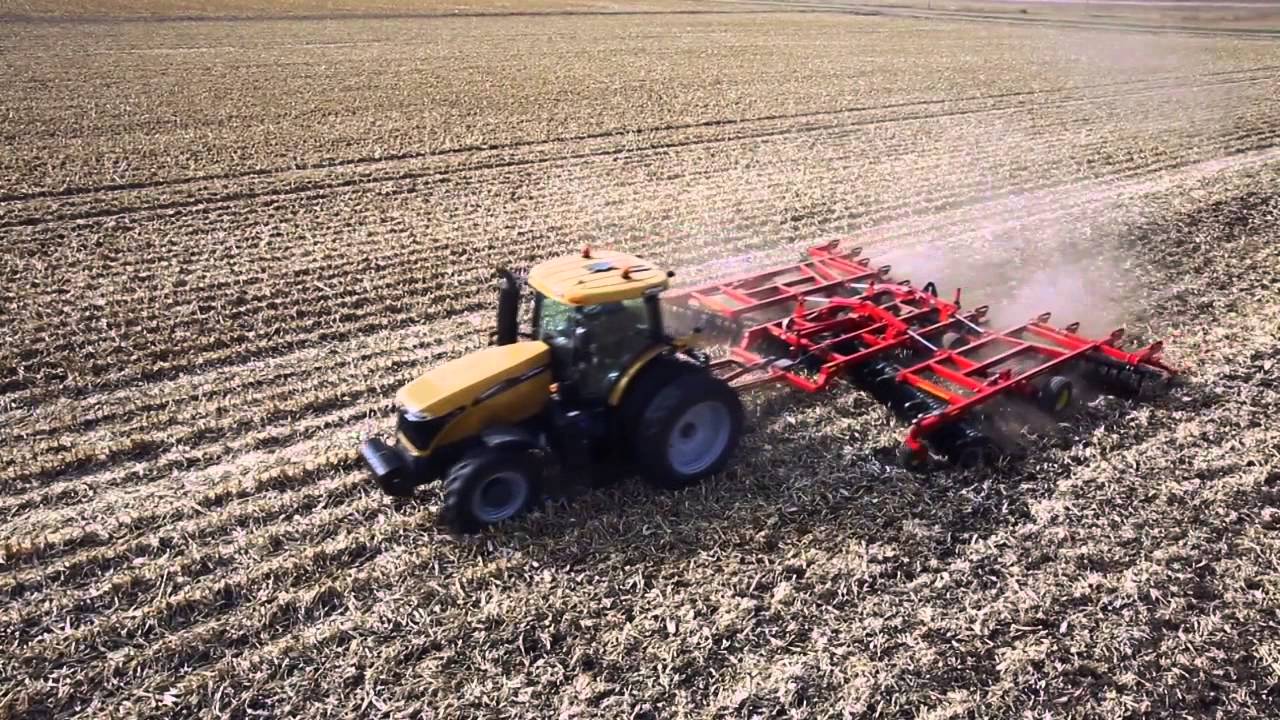

  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

WORKING WIDTHS OF 8’ AND 12’

Crafted with the strength and features demanded by today’s high-horsepower precision farming, the Sunflower 7600 Series Strip-Till tools are available in 20’ (6.10 m) and 30’ (9.15 m) tool bars, accommodating eight and twelve row units at 30” (762 mm) spacing. Heavy-duty parallel links connect the row units to the frame, which keeps the shank and blade angles true no matter the conditions. Adjustable components feature fixed angle and depth references making adjustments fast and easy. The availability of a full compliment of custom designed fertilizer application equipment makes the 7600 Series the perfect tool for precise Fall fertilizer placement while building an ideal planter ready seedbed come Spring.

Specifications
Model
7610
Year
2022
Sale Type
New
Manufacturer
Sunflower
specs

Model Working width rows (spacing in (mm)) Transport width ft (m) Transport height ft (m) Weight lbs (kg) Power requirements
7610-20 8 (30” (190.5)) 20.67’ (6.3) N/A 7,250 (3,289) 20 to 25 hp per shank
7630-30 NT 12 (30” (190.5)) 15.75’ (4.8) N/A 11,700 (5,307) 20 to 25 hp per shank
7630-30 12 (30” (190.5)) 20.42’ (6.2) N/A 11,700 (5,307) 20 to 25 hp per shank



features

7610 AND 7630 STRIP-TILL TOOLS FEATURES

  • 30" (762 mm) row spacing

  • Parallel linkage with spring down pressure

  • Shear Bolt or Spring Trip

  • 24" (559 mm) x .25" (6.35 mm) coulter blade with depth band

  • 13" (330 mm) spoke trash whippers

  • 1" (25 mm) x 3" (75 mm) x 24" (610 mm) shank

  • 16" (406 mm) wavy berming disc blades

  • 12" (305 mm) rolling baskets

  • Available Models: 7610-20, 7630-30, 7630-30 NT

view strip-till tools features

Callout Image

Coulter Blade

The coulter blades cut deep, slicing through surface and subsurface residue to eliminate interference with the shank. Depth bands on the coulter blades ensure row-unit depth and stabilize the tool. The all-welded coulter assemblies are an integral part of the row unit. Adjustable scrapers clean the blade and the depth band, enabling the unit to work through tough conditions. Two heavy-duty sealed bearings in each hub minimize daily maintenance.

Callout Image

Shank Assembly

The 1/2 x 3 x 24-inch mole knife shank shatters compaction in the root zone, allowing root systems to go deep for soil moisture and nutrients. Shank depth is adjustable in 2-inch increments with an effective working range of 4 to 10 inches deep. The 15-degree mole point creates the perfect environment for a concentration zone of NH3 or liquid fertilizer. Many different knives, points and fertilizer delivery systems are available, making this tool customizable for any program.


Callout ImageBerming Blades

The 16-inch-diameter wavy blades are fully adjustable, with a 4-inch vertical range and up to 10-degree blade-angle adjustment. The berming blades are mounted close to the tillage shank so they can capture the tilled soil and build a berm of optimum shape and height.

Callout Image

Berm Reel

Consisting of 1/4 x 1 1/4 x 12-inch concave bars, this large diameter x 12-inch-wide reel is key to sculpting and conditioning the berm. Particulate size, firmness and berm shape are greatly determined by the berm reel. Spring down pressure can be adjusted from 0 to 125, customizing the berm for all applications.

Callout ImageRow-Unit Mounting

Heavy-duty springs are easily adjusted in increments of 25 pounds of down pressure per revolution. A full 10 inches of vertical travel has been engineered into the wide-set parallel linkage. Parallel linkage allows each row unit to work independently from the tool bar, which maintains the shank and blade settings.

Callout Image

Trail Hitch

The heavy-duty rear tow hitch is equipped with a 3-inch single-lip clevis and rear parking stand.
