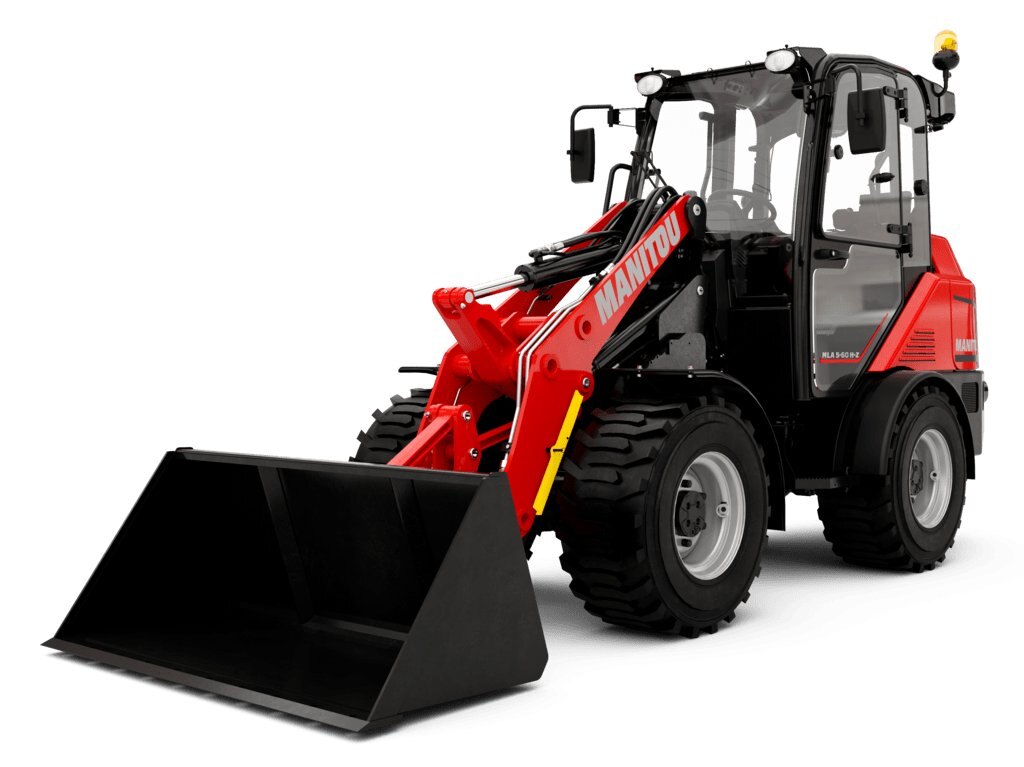

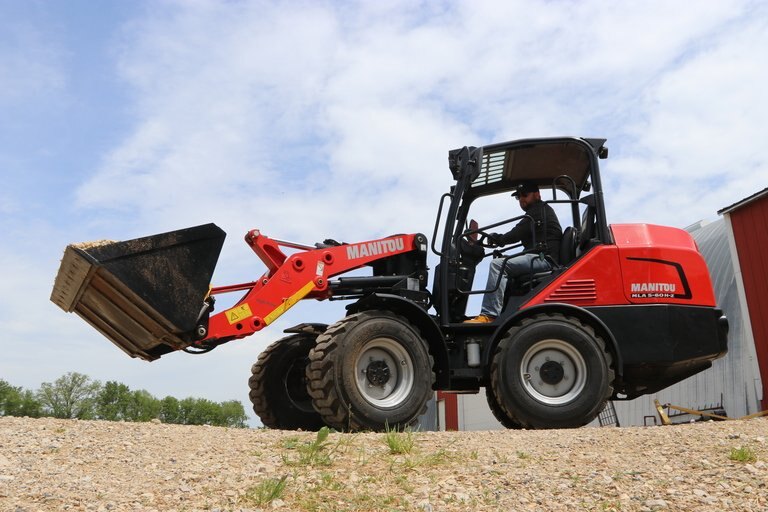

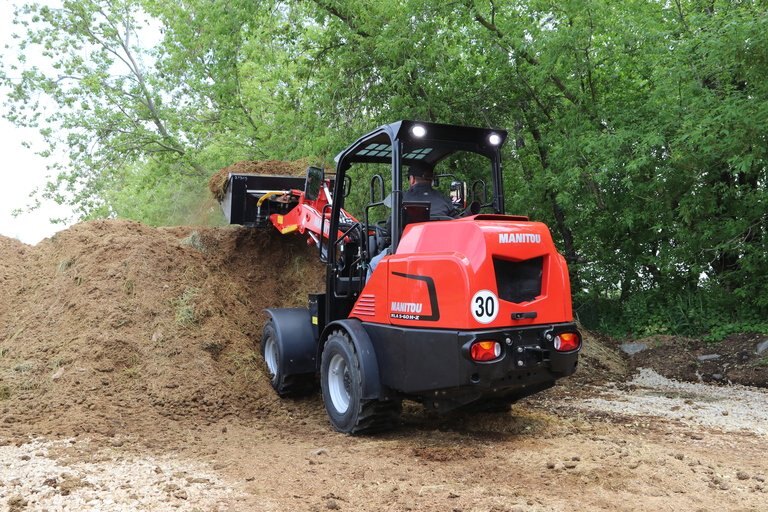

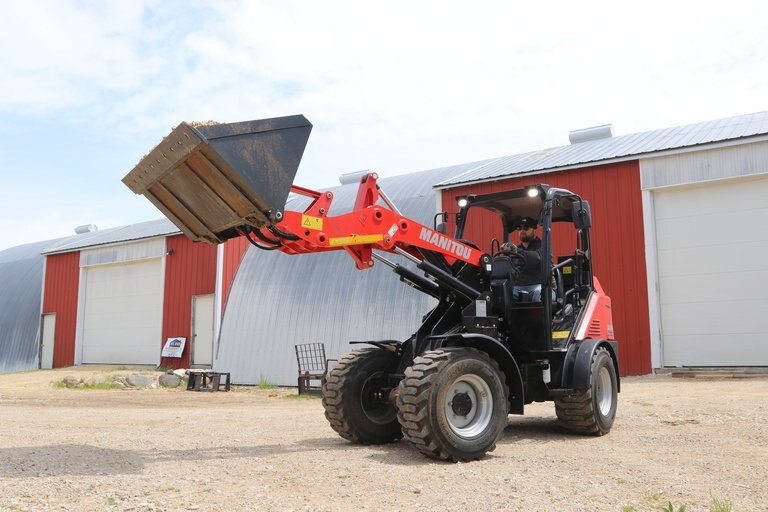

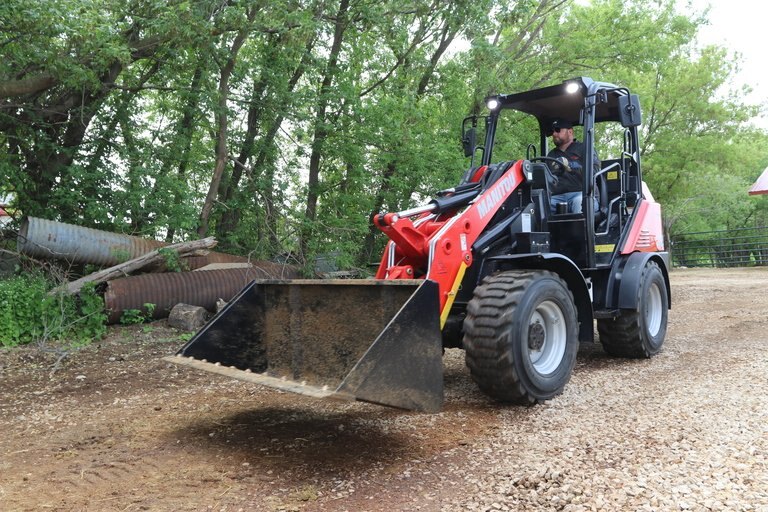

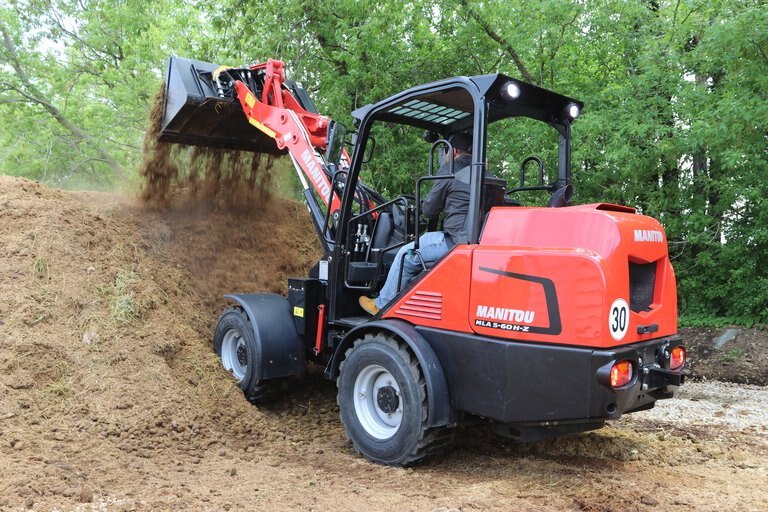

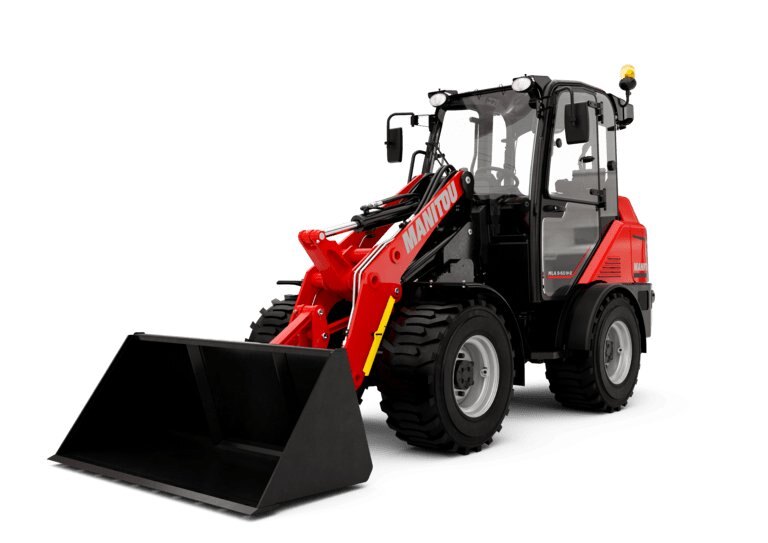

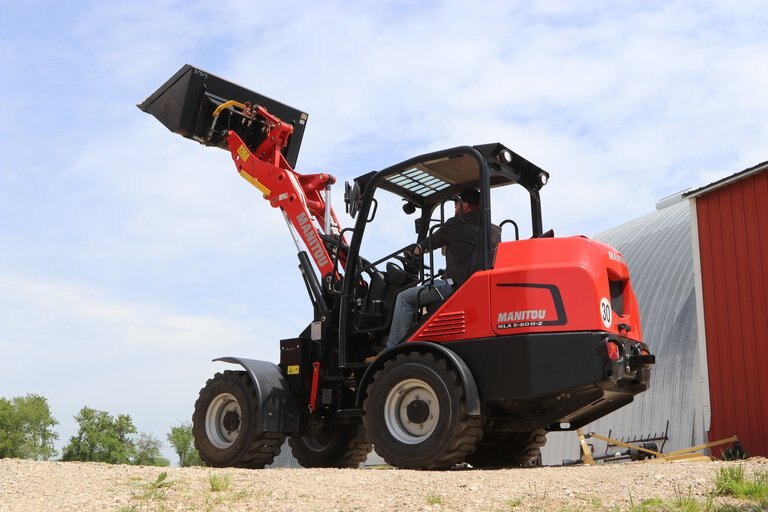

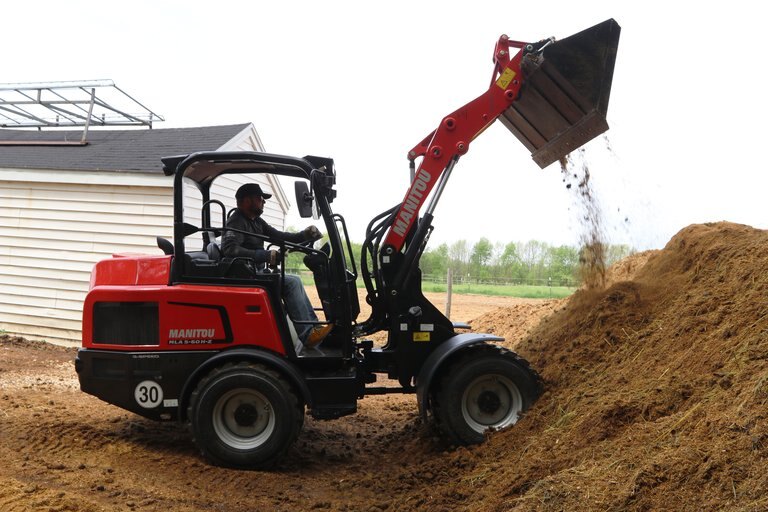

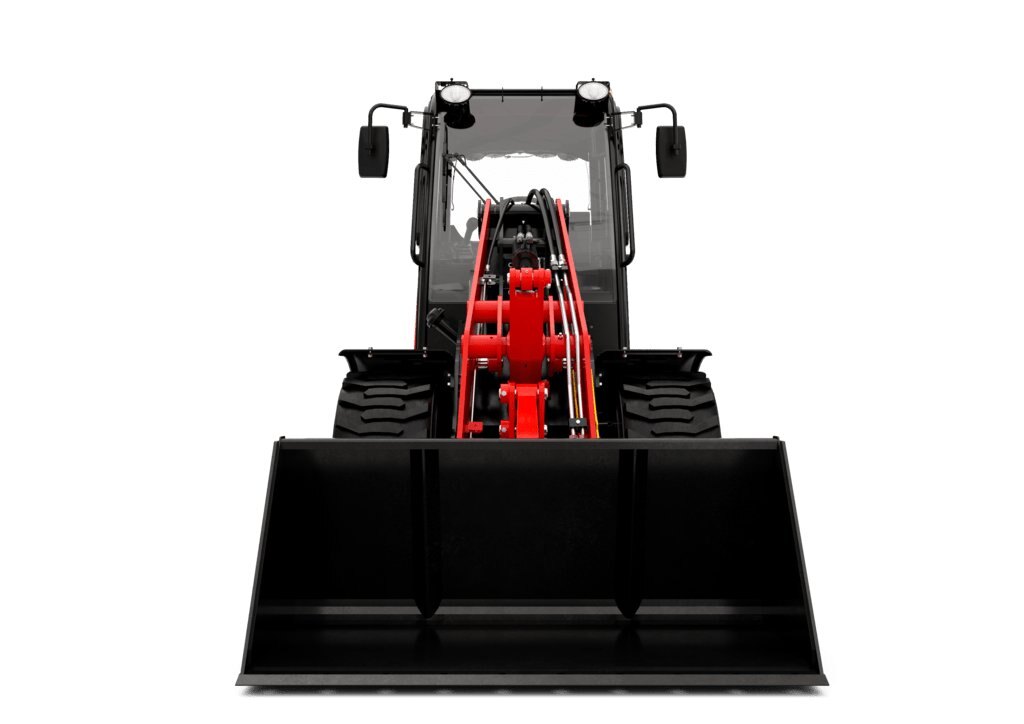

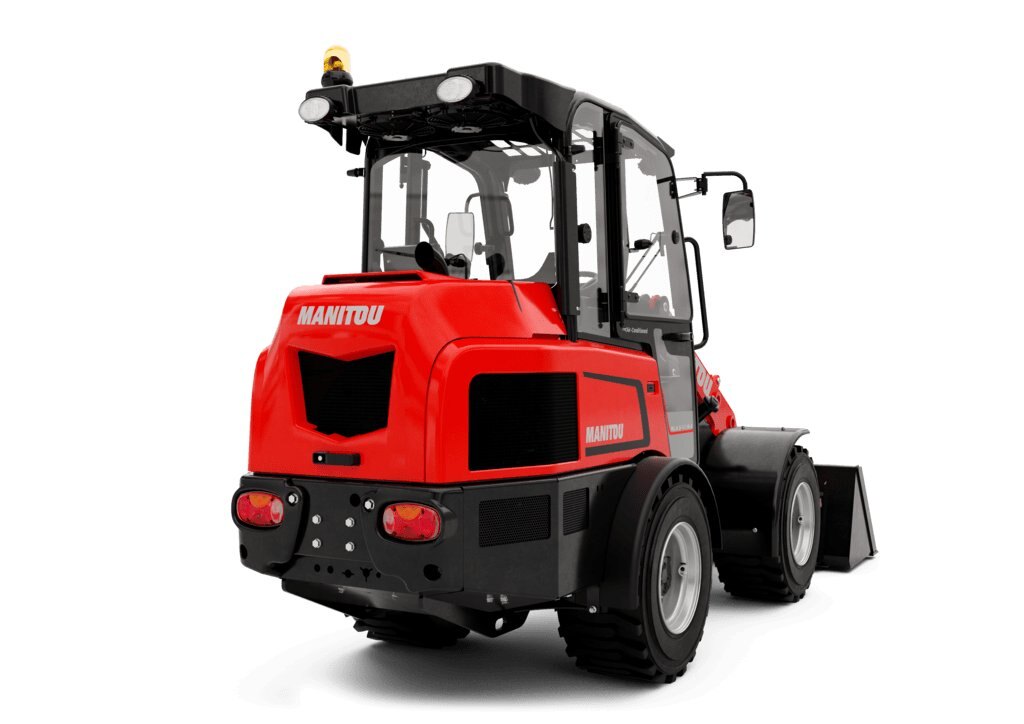

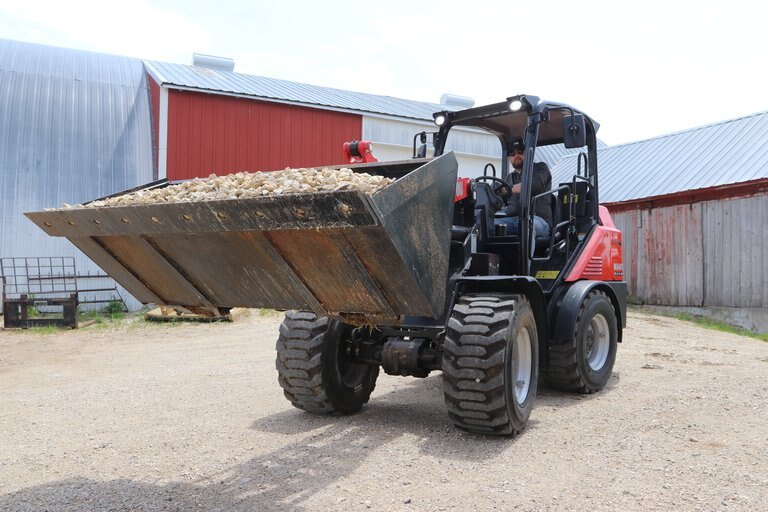

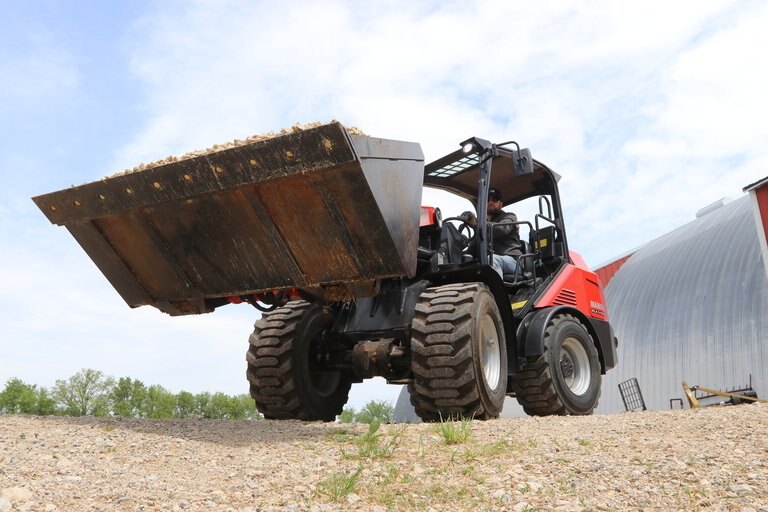

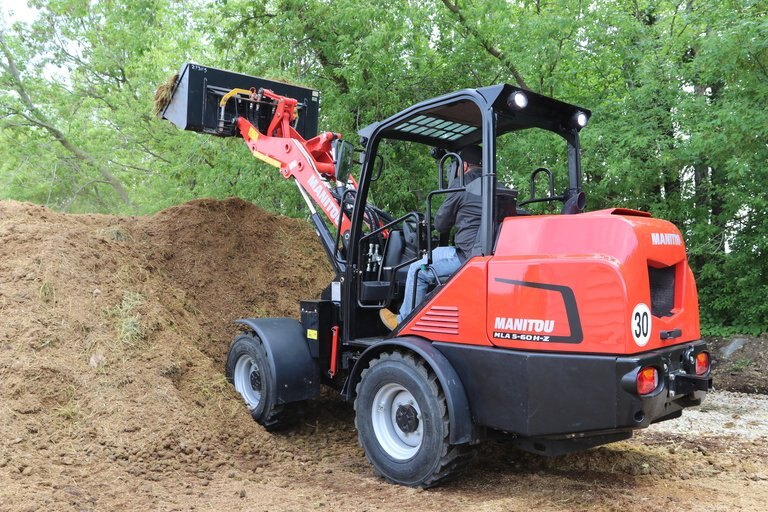

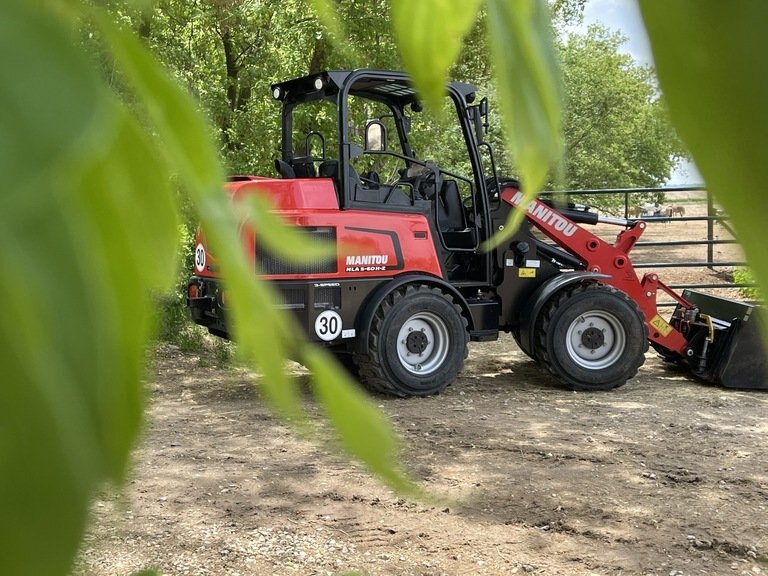

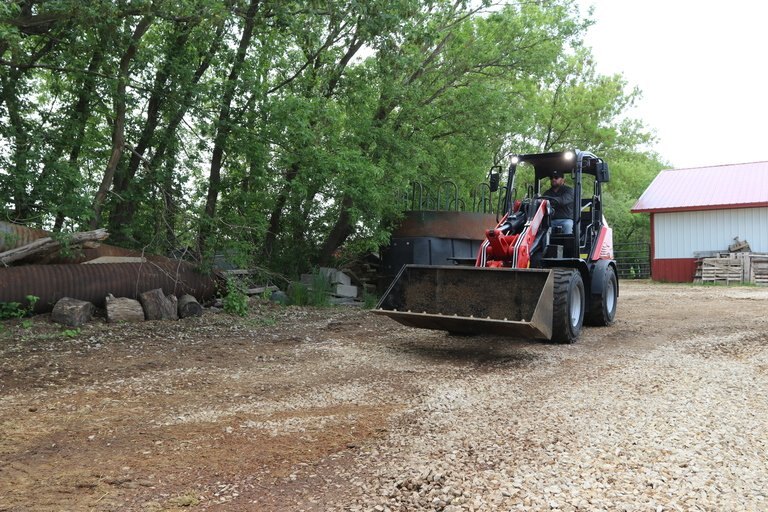

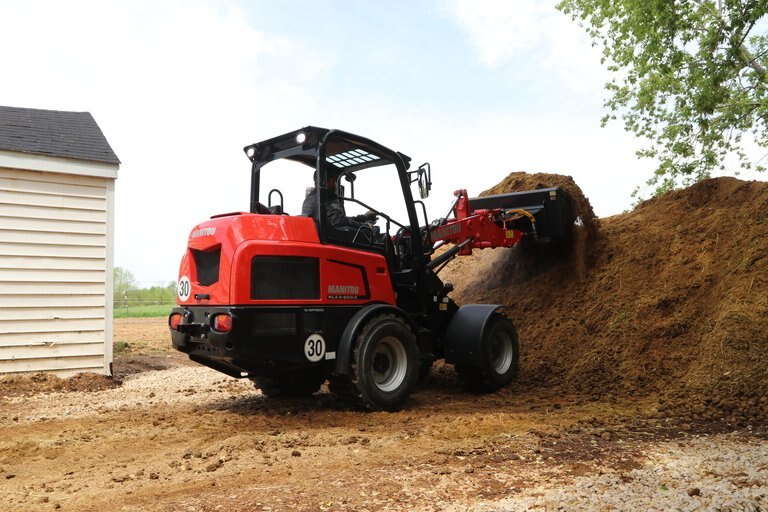

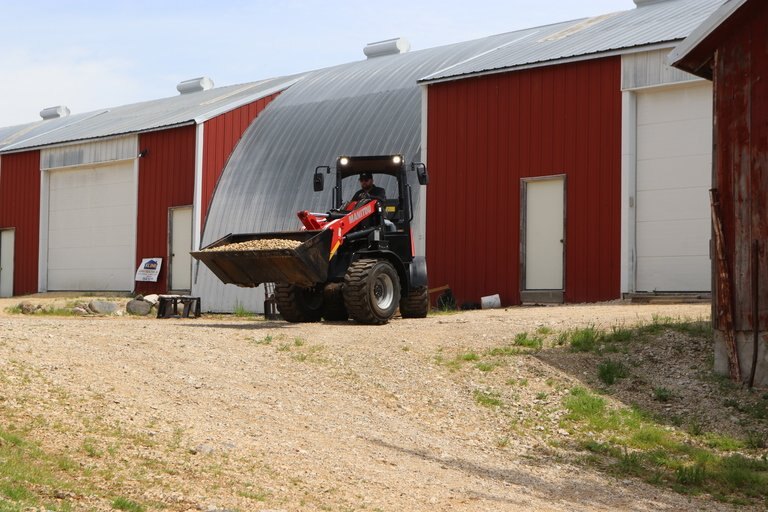

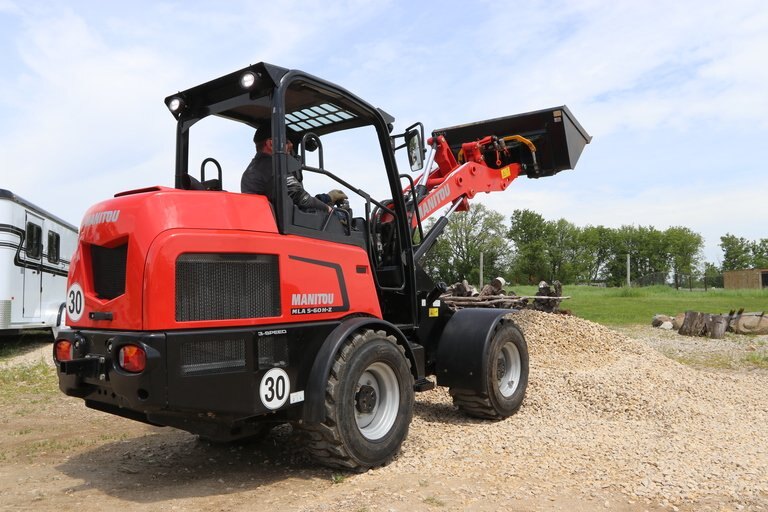

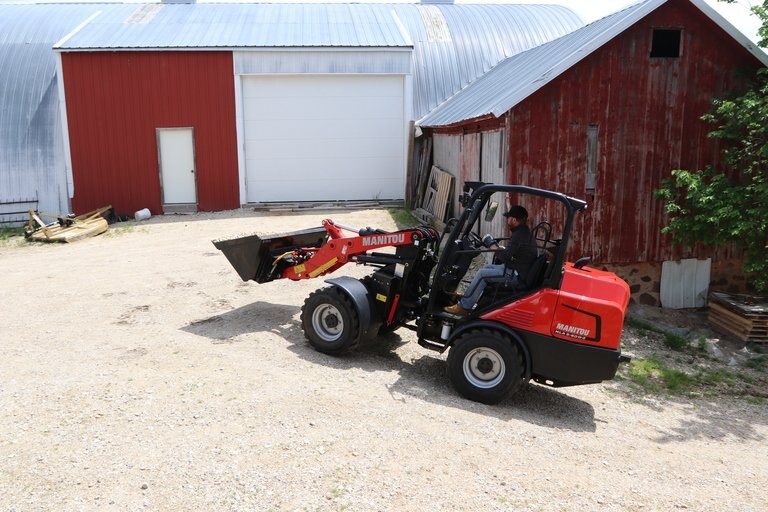

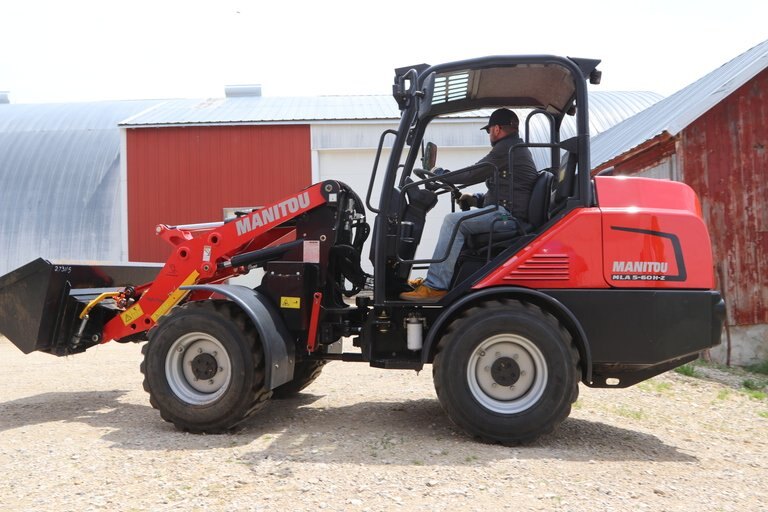

Manitou MLA 5-60 H-Z

  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
  • Manitou MLA 5 60 H Z
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The MLA 5-60 H-Z is the smallest of our lineup to have our Z-kinematic loaderarm, giving you unmatched break-out forces. The latest of our Articulated Loader lineup comes with an open canopy with additional options available in 2021. The 2-speed hydrostatic transmission, 100% diff lock and hand throttle is standard, making the MLA 5-55 have all the features you need for excellent performance and comfort. Small machine, big power.
Specifications
Model
MLA
Category Name
Equipment
Year
2025
Sale Type
New
Manufacturer
Manitou
capacities
Reach At Max. Height
0.43 m
Breakout Force With Bucket
4329.46 daN
Max. Height Of Bucket Pivot Point
3.16 m
Max. Lifting Height (below Forks)
2.97 m
Static Tipping Load With Forks (straight)
1547 kg
Static Tipping Load With Bucket (straight)
2190 kg
Static Tipping Load With Forks (full Turn)
1204 kg
Static Tipping Load With Bucket (full Turn)
1694 kg
weight and dimensions
Wheelbase
1744 mm
Ground Clearance
0.25 m
Overall Cab Width
1.22 m
Articulation Angle
45 °
Overall Height With Cab
2.31 m
Overall Width Less Bucket
1.47 m
Overall Width Of 4 Posts Canopy
1.23 m
Overall Height With 4 Posts Canopy
2.31 m
External Turning Radius (over Tyres)
3.20 m
Unladen Weight (with Forks) With 4-post Canopy
3388.30 kg
performances
Dump
1.85 s
Crowd
2.52 s
engine
Engine Norm
Stage V / Tier 4 Final
Engine Brand
Deutz
Engine Model
TD 2.2 L3
Engine Cooling System
2 radiators water + hydraulic oil
Max. Torque / Engine Rotation
200 Nm / 2400 rpm
I.C. Engine Power Rating / Power
60 Hp / 45.50 kW
Number Of Cylinders / Capacity Of Cylinders
3 - 337.82 cm³
transmission
Parking Brake
Manuel
Service Brake
Hydraulic drum brake on front axle, acting on all 4 wheels
Differential Lock
Front and rear locking of the machine
Transmission Type
Hydrostatic
Number Of Gears (forward / Reverse)
2 / 2
Max. Travel Speed (may Vary According To Applicable Regulations)
28.32 km/h
hydraulics
Hydraulic Pump Type
Gear pump
High-Flow Option (l/min)
72.30 l/min
Hydraulic Flow - Pressure
58.30 l/min / 210 bar
Drive Hydraulic System Pressure
420 bar
tank capacities
Fuel Tank
82.50 l
Hydraulic Oil
45 l
miscellaneous
Safety Cab Homologation
ROPS - FOPS cab (level 1)
technical sheet
Name Link
Technical sheet Download
