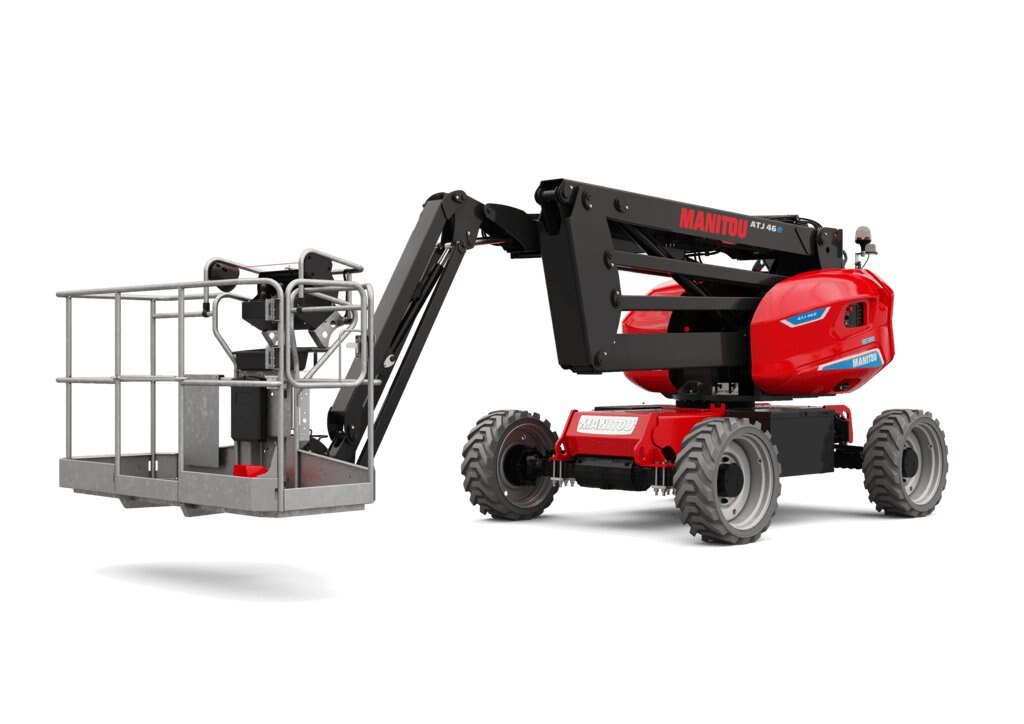

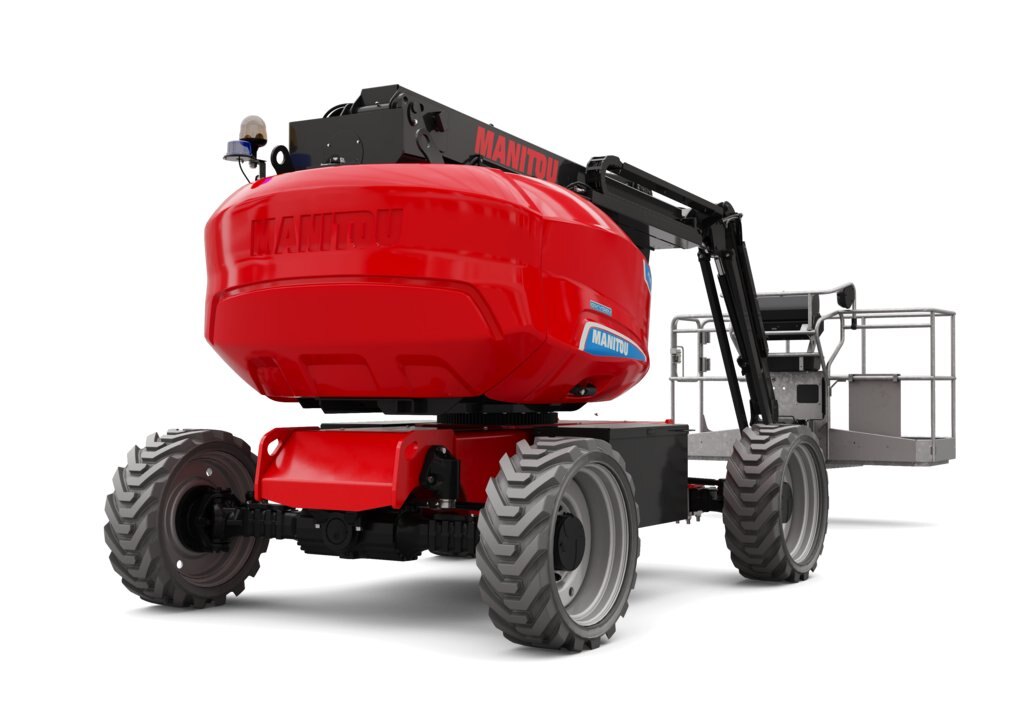

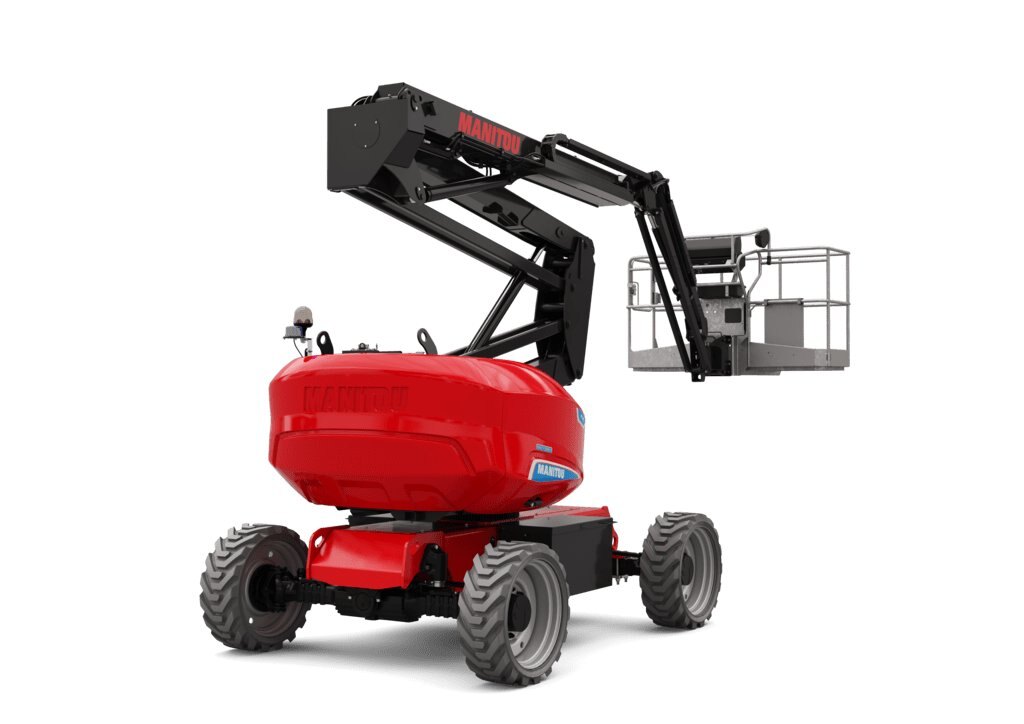

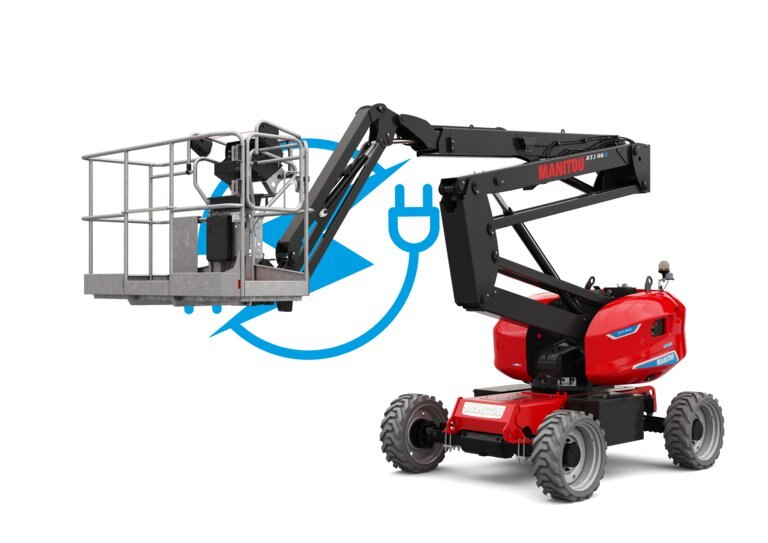

Manitou ATJ 46 e
Call for Price
Overview
Specifications
capacities
weight and dimensions
performances
wheels
engine
miscellaneous
standards compliance
technical sheet
Videos
Documents
|
Evolve easily in the most harsh environments with ATJ 46 e articulated boom lift 100% electric. Equipped with an all-terrain chassis, reinforced structure and a fully galvanized basket, this powerful model is ideal for working safely on all types of soils, including the roughest. High reliability, this units workplatform offers excellent performance and is ideal for the toughest conditions of use. Ensure comfort and safety for your operators with the exceptional performance of the ATJ 46 e articulated boom and access all your outdoor elements located in height. |
|
Take a closer look at this product!
Want to experience the product? Ask for a demonstration to our dealers to discover the product in real life and discuss how it fits your needs. |
Model
ATJ
Category Name
Equipment
Year
2025
Sale Type
New
Manufacturer
Manitou
Overhang
7.43 m
Max. Outreach
8.11 m
Working Height
16.03 m
Platform Height
14.03 m
Turret Rotation
350 °
Platform Capacity
250 kg
Platform Rotation (right / Left)
90 ° / 90 °
Number Of People (indoor / Outdoor)
2 / 2
Pendular Arm Rotation (left / Right)
90 ° / 90 °
Pendular Arm Rotation (top / Bottom)
+65 ° / -59.50 °
Wheelbase
2.30 m
Overall Width
2.32 m
Overall Height
2.39 m
Overall Length
6.50 m
Platform Weight*
6220 kg
Floor Height (access)
0.46 m
External Turning Radius
3.75 m
Overall Height (stowed)
2.77 m
Overall Length (stowed)
4.48 m
Platform Dimensions (length X Width)
2.10 m x 0.76 m
Counterweight Offset (turret At 90°)
0.85 m
Ground Clearance At Centre Of Wheelbase
0.35 m
Gradeability
45 %
Drive Speed - Raised
0.70 km/h
Drive Speed - Stowed
5.20 km/h
Permissible Leveling
5 °
Tires Type
Foam-filled
Standard Tires
834 x 298 mm
Drive Wheels (front / Rear)
2 / 2
Braking Wheels (front / Rear)
0 / 2
Steering Wheels (front / Rear)
2 / 2
Battery Energy
23 kWh
Battery Voltage
48 V
On-board Charger (V / A)
48 V / 60 A
Battery Nominal Voltage / Capacity
48 V / 480 Ah
Ground Pressure
13 dan/cm2
Hydraulic Pressure
240 bar
Hydraulic Tank Capacity
24 l
Vibration On Hands/arms
< 2.50 m/s²
Number Of Cycles With STD Battery (HIRD)
58
Sound Pressure Level (platform Work Station) (platform Work Station)
70 dB
This Machine Is In Compliance With:
ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
