Manitou ATJ 46+ e CR

Videos
Call for Price
Overview

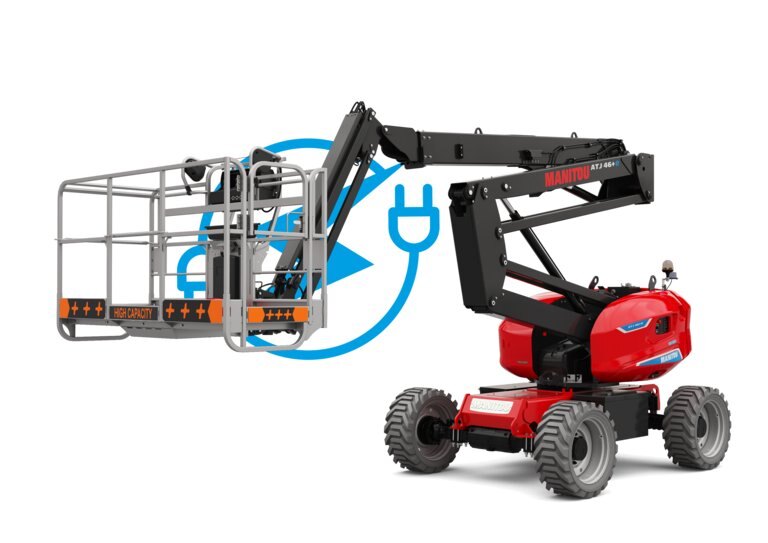

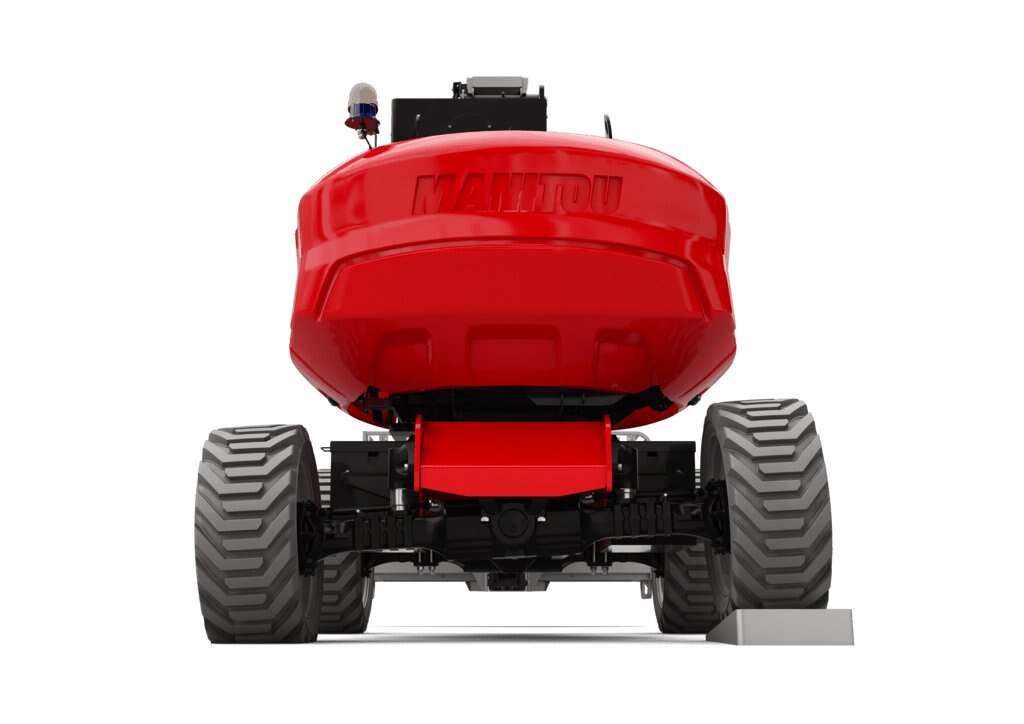

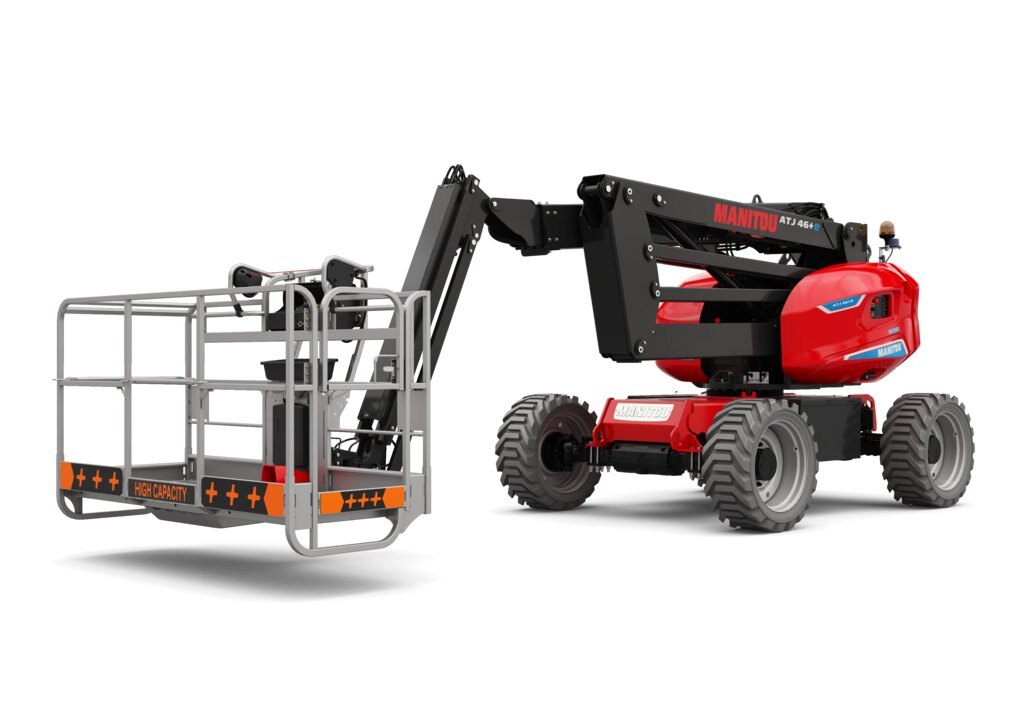

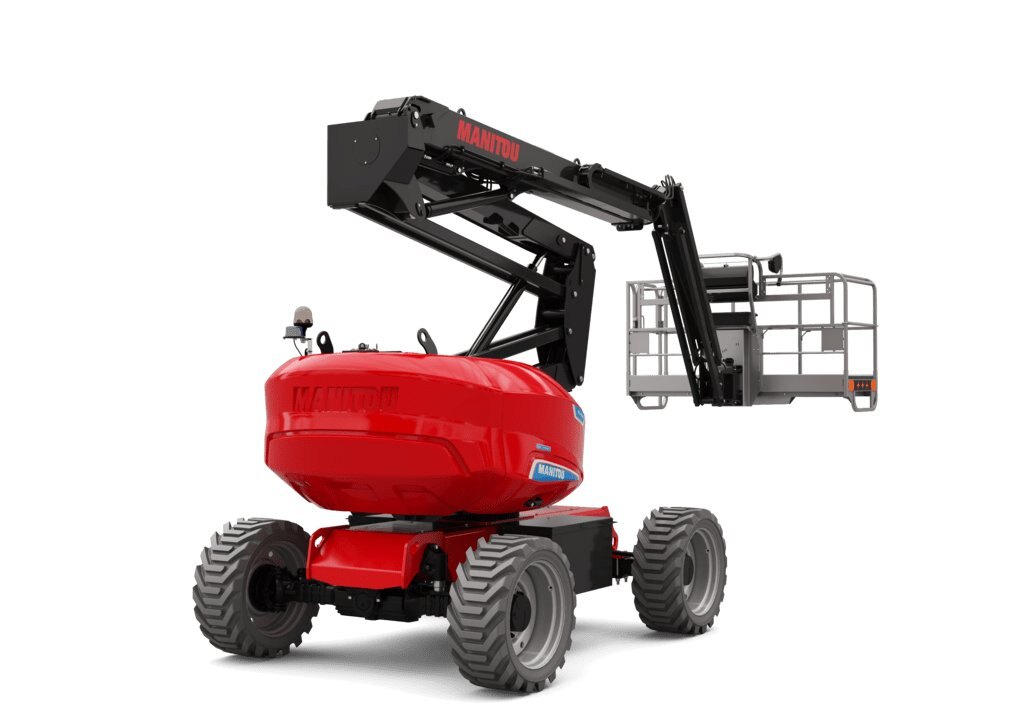

Opt for an ultra-performing and versatile all-terrain lifting solution with the ATJ 46+ e CR 4x4 100% articulated electric boom lift! Take advantage of its performance to optimize your operations on rough, uneven or muddy terrain or even indoors thanks to its zero emission energy. Its 4 steering wheels allow you to evolve in the most difficult terrains.
Equipped with transmission decks, this Manitou model has all the features to facilitate your work at height:
spacious and resistant basket, important ground clearance, active oscillating axle, 4 driving wheels, 4 steering wheels, continuous rotation as an option, important load capacity (408 kg), 4 simultaneous movements...
The ATJ 46+ e CR 4WS articulated aerial work platform allows you to work safely up to a height of 16, outdoors or indoors, thanks to the 100% electric motor and therefore without Co2 emissions. A plus: the slinging without lifting beam, faster for your teams.

Take a closer look at this product!
This video presentation from our Manitou experts shows you what makes this product unique!

Want to experience the product? Ask for a demonstration to our dealers to discover the product in real life and discuss how it fits your needs.

Specifications
Model
ATJ
Category Name
Equipment
Year
2025
Sale Type
New
Manufacturer
Manitou
capacities
Overhang
7.44 m
Max. Outreach
8.34 m
Working Height
16.22 m
Platform Height
14.26 m
Turret Rotation
360 °
Platform Capacity
408 kg
Platform Rotation (right / Left)
90 ° / 90 °
Number Of People (indoor / Outdoor)
3 / 3
Pendular Arm Rotation (left / Right)
90 ° / 90 °
Pendular Arm Rotation (top / Bottom)
+66.50 ° / -65.80 °
weight and dimensions
Wheelbase
2.30 m
Overall Width
2.38 m
Overall Height
2.48 m
Overall Length
6.88 m
Platform Weight*
7790 kg
Floor Height (access)
0.42 m
External Turning Radius
3.78 m
Overall Height (stowed)
2.94 m
Overall Length (stowed)
4.70 m
Platform Dimensions (length X Width)
2.30 m x 0.90 m
Counterweight Offset (turret At 90°)
0.37 m
Ground Clearance At Centre Of Wheelbase
0.39 m
performances
Gradeability
45 %
Drive Speed - Raised
1 km/h
Drive Speed - Stowed
5 km/h
Permissible Leveling
5 °
wheels
Tires Type
Foam-filled
Standard Tires
914 x 370 mm
Drive Wheels (front / Rear)
2 / 2
Braking Wheels (front / Rear)
0 / 2
Steering Wheels (front / Rear)
2 / 2
engine
Battery Energy
23 kWh
Battery Voltage
48 V
On-board Charger (V / A)
48 V / 60 A
Battery Nominal Voltage / Capacity
48 V / 480 Ah
miscellaneous
Ground Pressure
10.60 dan/cm2
Hydraulic Pressure
240 bar
Hydraulic Tank Capacity
24 l
Vibration On Hands/arms
< 2.50 m/s²
Noise To Environment (LwA)
< 70 dB
standards compliance
This Machine Is In Compliance With:
ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
