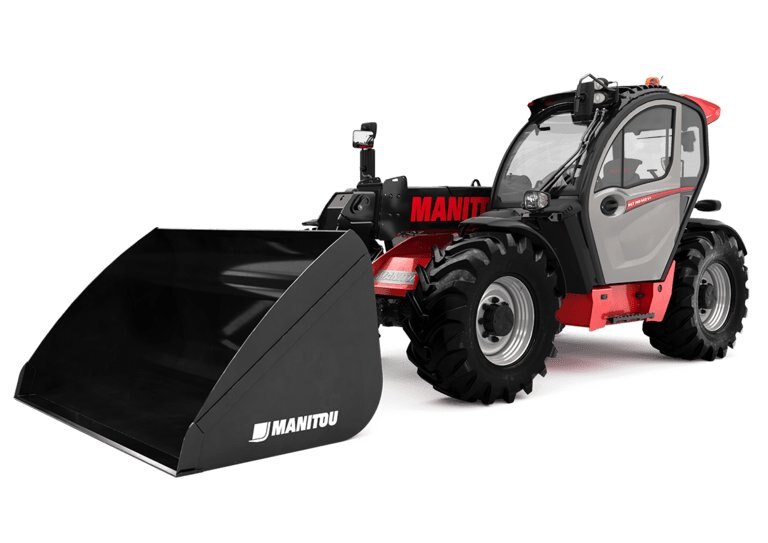

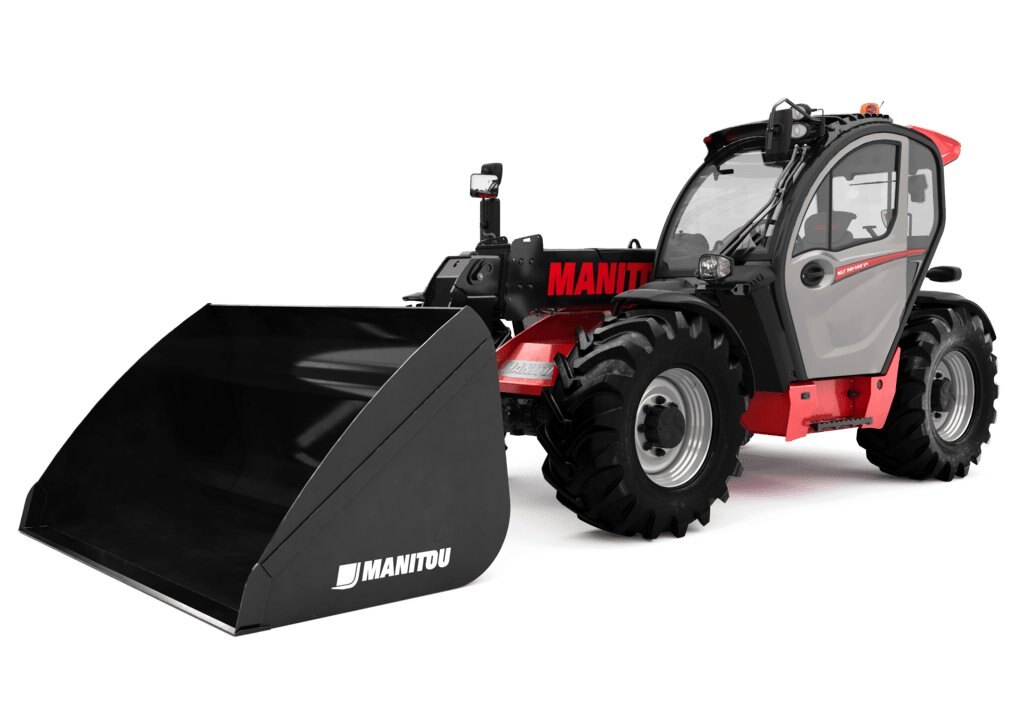

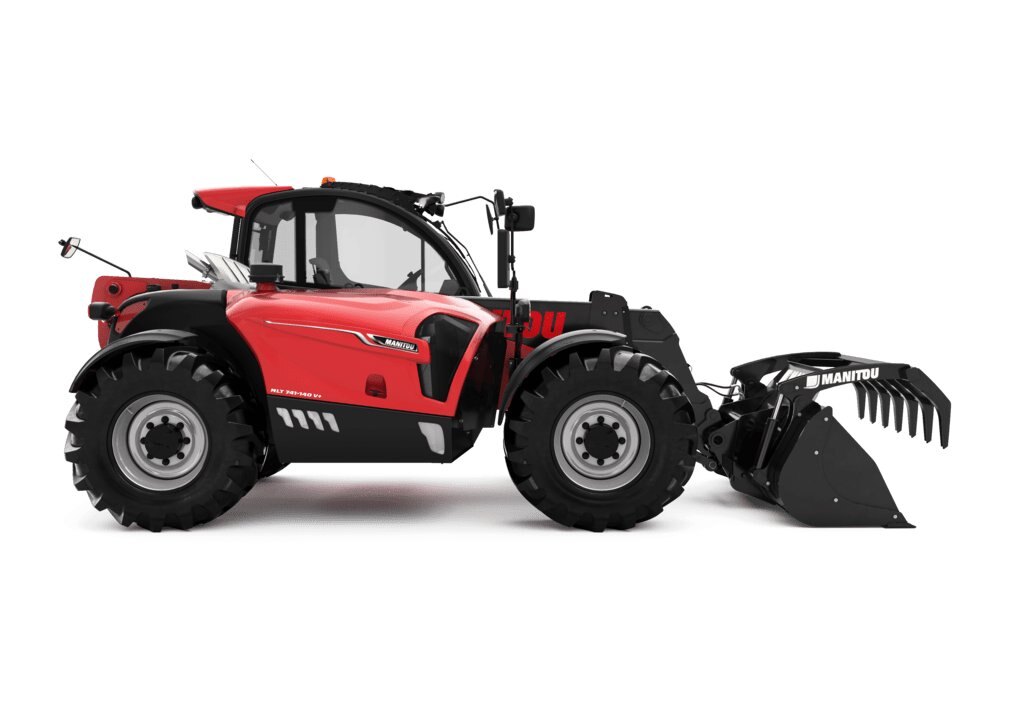

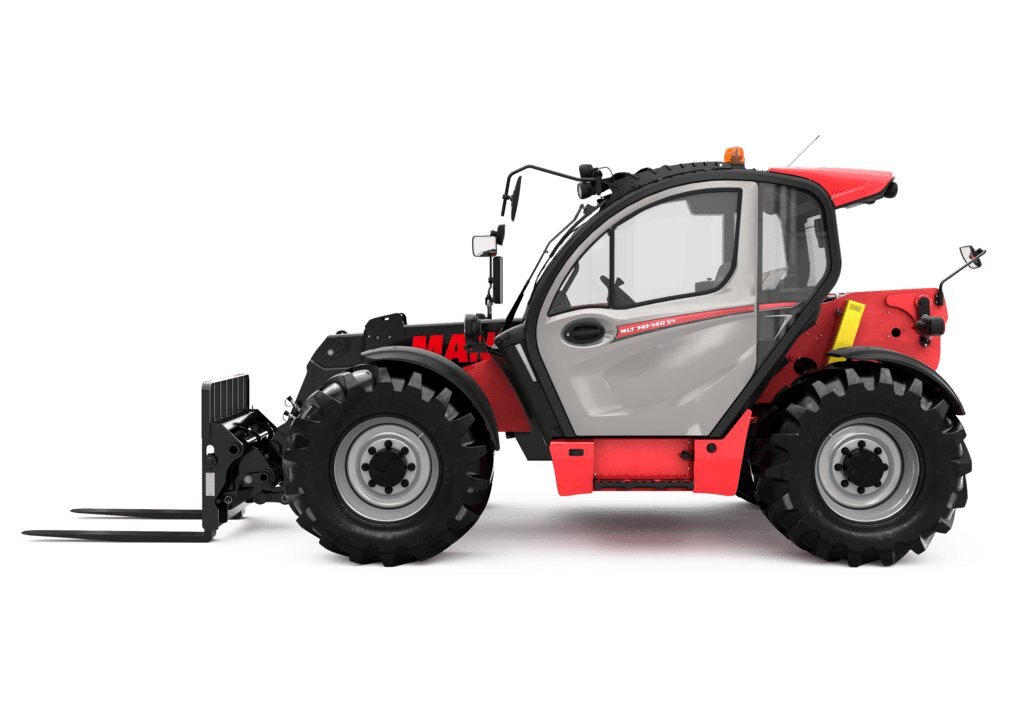

Manitou MLT 741-140 V+

  • Manitou MLT 741 140 V+
  • Manitou MLT 741 140 V+
  • Manitou MLT 741 140 V+
  • Manitou MLT 741 140 V+
  • Manitou MLT 741 140 V+
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Specifications
Model
MLT
Category Name
Equipment
Year
2025
Sale Type
New
Manufacturer
Manitou

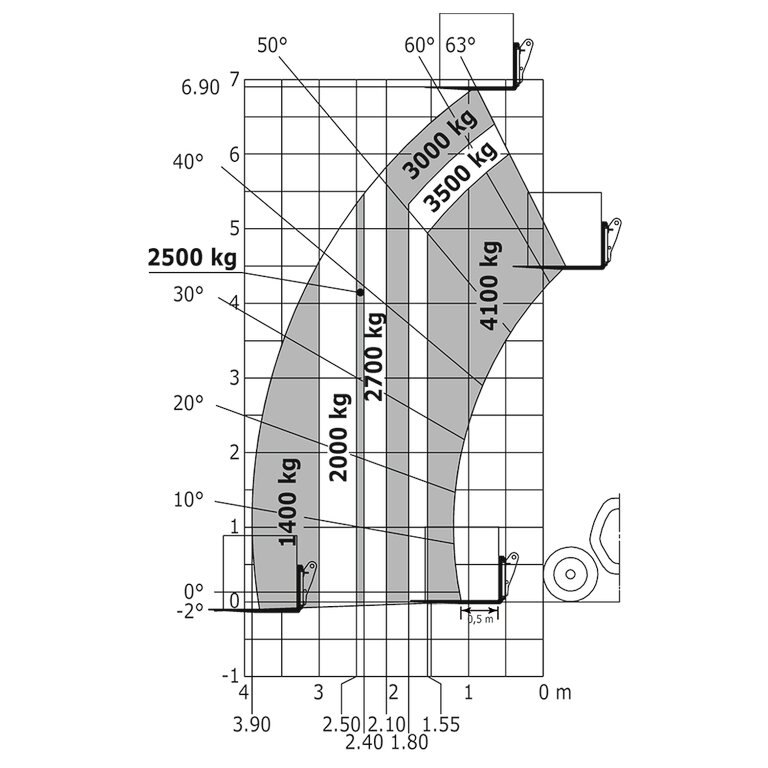

capacities
Max. Capacity
4100 kg
Max. Outreach
3.90 m
Max. Lifting Height
6.90 m
Reach At Max. Height
1 m
Breakout Force With Bucket
5992 daN
weight and dimensions
Wheelbase
2.81 m
Overall Width
2.39 m
Tilt-up Angle
12 °
Front Overhang
1.21 m
Overall Height
2.38 m
Standard Tires
Alliance - A580 - 460/70 R24 159A8
Tilt-down Angle
134 °
Ground Clearance
0.42 m
Overall Cab Width
0.95 m
Drive Wheels (front / Rear)
2 / 2
Unladen Weight (with Forks)
7755 kg
Steering Wheels (front / Rear)
2 / 2
External Turning Radius (over Tyres)
3.93 m
Overall Length To Carriage (with Hitch)
4.97 m
Overall Length To Carriage (without Hitch)
4.82 m
performances
Dump
2.80 s
Crowd
3.20 s
Lifting
7 s
Lowering
6 s
Extension
6.30 s
Retraction
5.60 s
engine
Engine Norm
Stage V / Tier 4 Final
Engine Brand
Deutz
Engine Model
TCD 3.6 L4
Reversible Fan
Standard
Drawbar Pull (Laden)
6200 daN
Engine Cooling System
4 radiators (water + intercooler + hydraulic oil + transmission oil)
Max. Torque / Engine Rotation
500 Nm @1600 rpm
I.C. Engine Power Rating / Power (kW)
136 Hp / 100 kW
Number Of Cylinders / Capacity Of Cylinders
4 - 3621 cm³
transmission
Parking Brake
Automatic negative parking brake
Service Brake
Oil-immersed multi-discs braking on front & rear axles
Differential Lock
Limited slip differential on front axle
Transmission Type
M-Vario Plus
Max. Travel Speed (may Vary According To Applicable Regulations)
40 km/h
hydraulics
Hydraulic Pump Type
Variable displacement pump
Flow Sharing Distributor
Standard
Hydraulic Flow / Pressure
170 l/min - 270 bar
tank capacities
Fuel Tank
120 l
Hydraulic Tank Capacity
135 l
Diesel Exhaust Fluid (AdBlue® Type)
10 l
noise and vibration
Vibration On Hands/arms
< 2.50 m/s²
Noise To Environment (LwA)
105 dB
Noise At Driving Position (LpA) Tested Following NF EN 12053 Norm
72 dB
miscellaneous
Controls
JSM
Tractor Homologation
Tractor homologation
Safety Cab Homologation
Cabin ROPS - FOPS level 2
technical sheet
Name Link
Technical sheet Download
