Krone Mower Combinations EasyCut B

Call for Price
  • EasyCut B 870 and B 1000 without conditioner
  • EasyCut B 750, B 890, B 970 without conditioner
  • EasyCut B 950 Collect without conditioner, with merger augers
  • EasyCut B 870 CV and B 1000 CV with steel tine conditioner
  • EasyCut B 870 CR and B 1000 CR with roller conditioner
  • EasyCut B 870 CV Collect and 870 CR Collect, B 1000 CV Collect and B 1000 CR Collect with merger belts
  • KRONE quick-change blades
  • KRONE SafeCut: Individually protected discs
  • KRONE SmartCut: Stripe-free cutting
  • KRONE CombiFloat: Uniform ground pressure across the entire work width
  • Operator comfort to the max
Mower combinations EasyCut B
Sale Type
  • „Full driveline protection for added reliability
  • „Neighbouring discs will not collide
  • „Wear-free
  • „Quick-change roll pins for minimum downtime and costs
Colliding discs may cause damage and involve costly repairs. KRONE SafeCut offers a maximum of protection and peace of mind. The award winning system on all EasyCut models offers a unique level of protection and operator comfort. SafeCut is a base specification feature on all EasyCut F and R models.
Each disc on the mower has its own individual impact protection. When the blade hits an obstacle the shockload is transferred to a roll pin which breaks. As a result, the disc automatically threads 15 mm up on the drive shaft.EasyCut Triple 030
Peace of mind: Instead of transferring the full shockload to the spur gears, the roll pin in the sprocket driveshaft breaks when there is a momentary overload. The pinion shaft continues spinning, jacking up the disc in question and the disc moves out of the risk zone and the orbit of the neighbouring discs. This way SafeCut prevents damage to the spur gears and the neighbouring discs. Replacing the roll pin takes a few minutes and is not very costly.EC F R 15 Seite 13 Bild 0001


Forget about stripes: With some discs turning in pairs towards each other and others away from each other, it was necessary to redesign the degree of blade overlap to get cleanest cuts. Therefore we increased the overlap between those discs that turn outwards – a modification that leads to stripeless cuts in light and young material. Vice versa, a larger gap between the blades that turn towards each other encourages the smooth flow of large masses to the rear.EC F R 15 Seite 08 Bild 0002
The original: The KRONE developed satellite driveline comprises massive spur gears with up to 66 teeth which transfer the power all the way down to the very last disc. Revolving at lower speeds, the large-diameter gears always have a number of teeth in mesh at any one time, giving quiet running, ultimate efficiency and maximum longevity. With each of the auxiliary gears driving just one disc, it is exposed to only minimum mechanical strain.EC F R 15 Seite 06 Bild 0002
The wedge-shaped cutterbar offers many height setting options. The spur gears run in massive double bearings, allowing the cutterbar to handle extremely high loads.EasyCut Triple 017


easycut b

EasyCut B 950 Collect
The mower combination without conditioner but with merger Augers

  • „Light-weight and compact mowers without conditioners
  • „9.45m working width including front mower
  • „Massive augers merge the swaths
  • „Three swathing modes are selected from the cab: central swathing, independent swathing and no swathing
  • „Hydraulic mower suspension controlled from the cab

The EasyCut B 950 Collect is a very compact combination that has merger augers but no conditioners. The massive augers merge large volumes of crop such as green rye into a uniform and clean swath.

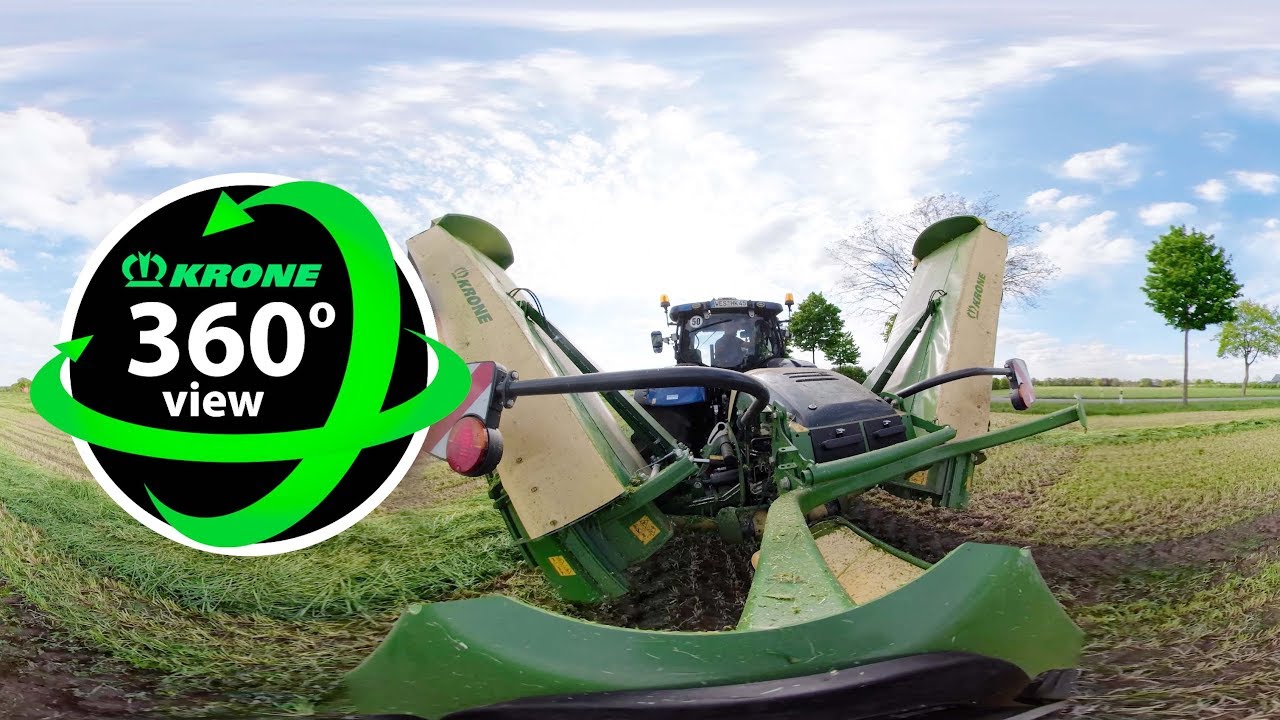

Use the mouse or your finger to drag the image and view the EasyCut B 950 Collect from every angle in this 360° video.

The sturdy 45 cm diameter cross augers are powered by a right-angle gearbox and revolve at a consistent speed of 750rpm, giving maximum efficiency and productivity. Arranged closely behind the cutterbars, these augers feed large volumes of crop in a consistent flow from the mowers to the middle of the combination, forming a tidy and uniform swath that is cleanly gathered by the following harvesters.EasyCut B 950 Collect 003
The decks behind the augers open and close hydrauli-cally for convenient selection of one of the three swathing modes from the cab: swathing, independent swathing or no swathing.EasyCut B 950 Collect 005


  • „Variable, up to 10.00 m work widths on EasyCut B 1000
  • „Weight-optimized headstock reduces rear axle weight and ground pressure.
  • „Adjustable non-stop break-back system is a standard feature
  • „SmartCut and SafeCut ensure perfect cuts and maximum uptime
  • „Hydraulic suspension is as a standard feature

Krone Mower Combinations EasyCut BThe EasyCut B 870 and B 1000 are two high-capacity mower combinations. They feature leading edge technology and a new styling plus a weight-optimised headstock with hydraulic suspension that helps protect the sward and also attaches to smaller tractors.

EasyCut B 870 CV · B 870 CR
The mower combinations with conditioners

  • „8.70 m work width
  • „EasyCut B 870 CV with tine conditioner
  • „EasyCut B 870 CR with roller conditioner (rubber rollers or M-Rolls)
  • „A balancing arm ensures the ground pressure is uniform on either side
  • „A standard break-back system gives effective protection
EasyCut B 870 CV and CR utilize the tractor to the full and save time and costs. The versatile model is the EasyCut B 870. Featuring conditioners and extra wide merger belts,
this machine enables you to cut, condition and spread or swath the material in one single pass.Krone Mower Combinations EasyCut B
A KRONE exclusive! The patented balancer arm allows adjusting the spring tension on both rear mowers to maintain a consistent ground pressure, warranting highest quality cuts, clean forage, light pulling and effective protection of the valuable sward.EasyCut Triple 113


EasyCut B 1000 CV · B 1000 CR
Featuring conditioners and KRONE Combi Float suspension control

  • High work rates from up to 10.10 m working widths
  • „EasyCut B 1000 CV with steel tine conditioner
  • „EasyCut B 1000 CR with an aggressive roller conditioner
  • „Hydro-pneumatic compensation for uniform ground pressures
  • „A standard break-back system gives effective protection
Krone Mower Combinations EasyCut BThe EasyCut B 1000 CV and EasyCut B 1000 CR stand out for a huge 10.10 m work width and their powerful CV or CR conditioners. Another high-profile feature is the world-first Combi Float – the automatic and hydro-pneumatic control system.
  • Huge work widths of up to 9.70 m
  • The telescoping arms on EasyCut B 890 and B 970 ensure perfect overlapping
  • The compact headstock with break-back protection gives maximum operator comfort
  • A compensating rocker distributes the weight and ground uniformly to both wings

Krone Mower Combinations EasyCut BThe robust combination combines state-of-the-art mower technology and offers working widths of 7.46 m to 9.70 m for productivity. The mowers not only offer light pulling and high acreages but also superior functionality and perfect cuts.

combi float

CombiFloat ENThe automatic Combi Float suspension control offers unique advantages:
  • It maintains a uniform ground pressure in undulating terrain and with the mowers working in offset positions.
  • The mower suspension is easily adjusted from the tractor seat – even on the move.
  • A lightweight, hardwearing, easy-pulling and compact design.


Combi Float – only from KRONE: The speciality of the system is the fact that it uses extra spools and the circuit of the single-acting coupler with free return line to maintain the pressure inside the reservoirs of the hydro-pneumatic system. The advantage of this system is that it maintains a uniform suspension of both mowers in undulating terrain and when working at various work widths.EasyCut Triple 059


easy handling
  • Control box for maximum comfort
  • Operate the side mowers in synch or individually
  • Compact on the road: Not exceeding the 4.00 m transport height and
    2.95 m width limitations plus offering a 25 cm ground clearance

The KRONE mower combinations offer professional farmers and contractors the specification and comfort they need: a large work width, an enormous efficiency and compact build, as well as low tractor input, ease of operation and excellent handling – all being true benchmark features for a mower in this class.

Krone Mower Combinations EasyCut B

Minimum space: Folded into transport position and safely propped by sturdy stands, the 2.95 m wide EasyCut B 750, B 890 and B 970 models require about 3.70 m to 4.00 m in height. In transport, these machines won’t exceed the maximum height of 4 m and yet give a generous 25 cm ground clearance.

EasyCut Triple 038
cr conditioner

The KRONE CR roller conditioners

  • The roller conditioner models (rubber rollers or M-Rolls)
  • „Consistent crop flow by 25 cm diameter rollers
  • „High throughput from powered crop processor rollers
  • „Top quality from profiled rollers – thanks to their ‘meshing effect’
  • „Choice of roller conditioners – rubber rollers or steel M-Rolls
Krone Mower Combinations EasyCut BLeafy crops like Lucerne or clovers require a different type of conditioning than crops that are predominantly grass. The CR roller conditioners give particularly gentle treatment, leaving the delicate leaves intact which are so rich in protein and safeguarding the value of the feed. Spreading the crop will speed up wilting.
cv conditioner

The KRONE CV tine conditioner

  • V-shaped steel tines at steep angles give intensive and perfect conditioning
  • „The driveline dispenses with belts for frictional and low-maintenance Connections
  • „Great operator comfort from mechanical conditioner gearbox
  • Adjustable baffle plates for enhanced conditioning
Efficiency is one parameter in hay and forage harvesting, quality is another. The high-performance KRONE CV conditioner with V-shaped steel tines spreads the crop at the full working width.
The 640 mm diameter rotor and the helical arrangement of the tines warrant a continuous crop flow, high throughputs and superior conditioning.EasyCut Triple 007
Firm grip on the crop: The V-tines are made from hardened steel and mount at a steep angle, treating the forage intensively and powerfully. The tines pivot to avoid foreign objects, yet their forward movement is restricted to increase the service life of the bolts.EasyCut Triple 008


adjust the overlap

Nothing is left uncut: The arms on the side mowers telescope to provide the best possible overlapping with the front mower for a perfect cut.

EasyCut Triple 015

operator interfaces

Easy operation: The user-friendly control units on EasyCut B 750, B 870, B 890, B 970 und B 1000 allow operators to select transport position, headland and work position by flicking the rocker switches and control each mower separately.

EasyCut Triple 109

Dialling in: A dial on the EasyCut B 870 CV Collect control box sets the belt speed infinitely variably. The belt stops moving the moment it is raised out of work.

EasyCut Triple 134

Straightforward: The standard control unit on EasyCut B 1000 CV and CV Collect allows operators to adjust the mower suspension from a dial and to preselect a function which is then executed by a remote spool.

EasyCut Triple 138
Thanks to its ISOBUS certification, the B 1000 can be operated from various tractor terminals. No further devices are necessary to operate the machine – for maximum operator comfort.EasyCut Triple 111


forget about stripes
EasyCut B 1000 CV · B 1000 CR
Accurate overlaps
EasyCut Triple 049
  • „Hydraulic overlap Adjustment
  • „Large setting range of up to 40cm per side
  • „Cleanest cuts in bends and on slopes
The hydraulic sideshift feature on the side mowers eliminates any striping and maximizes efficiency productivity. The feature is standard specification. Cutting straight lines, the machine operates at the maximum width and minimum overlap, whereas larger overlaps and a narrow work width is selected when cutting curved lines. As you operate on the slope, simply retrieve a stored sideshift range to the right or left and avoid drifting and striping.
Hydraulic control: Double-acting rams inside the mower arms extend and retract the arms on the move to vary the degree of overlap.EasyCut Triple 016
Flexible: The ISOBUS terminal allows operators to move the rear mowers hydraulically by up to 40 cm in and out, either in sync. or independently. In addition, the standard-fi t terminal adjusts the work width simultaneously on both sides.EasyCut Triple 010
