Manitou MLT 420-60 H

Listing image Listing image Listing image Listing image
Specifications

Model MLT Category Name Equipment Year 2025
Sale Type New Manufacturer Manitou Price Contact for price CAD
Description

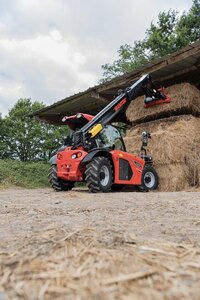

The ULM telehandler is designed to help you save time and money. It is adapted to many types industries: lanscaping companies, riding schools, building companies... Thanks to its 1.25 t or 1.5 t capacity (2 models are available), the ULM can easily place pallets of blocks or bricks, straw or hay bales... Its ultra compact dimensions and rough terrain abilities make this machine particularly adapted to work in tight spaces on all types of grounds. Due to its lightweight, the ULM can also easily be transported on a small trailer. If you need to fully adapt your machine to your environment, numerous options are available: the auto reversing fan, the air prefilter, a full range of tyres...



CAPACITIES
Max._capacity
2000 kg
Max._outreach
2.65 m
Max._lifting_height
4.35 m
Reach_at_max._height
1 m
Breakout_force_with_bucket
1886 daN
WEIGHT AND DIMENSIONS
Wheelbase
2.13 m
Overall_width
1.49 m
Tilt-up_angle
12 °
Front_overhang
1.04 m
Overall_height
1.96 m
Standard_tyres
CAMSO - SKS532 - 12-16.5 145A2
Tilt-down_angle
116 °
Ground_clearance
0.26 m
Overall_cab_width
0.80 m
External_turning_radius_(over_tyres)
3.06 m
Overall_length_to_carriage_(with_hitch)
3.64 m
Overall_length_to_carriage_(without_hitch)
3.64 m
PERFORMANCES
Dump
2.70 s
Crowd
3.30 s
Lifting
5 s
Lowering
3.50 s
Extension
4.80 s
Retraction
3 s
ENGINE
Engine_norm
Stage V
Engine_brand
Kubota
Engine_model
V2607-CR-E5B
Reversible_fan
Standard
Drawbar_pull_(Laden)
2850 daN
Engine_cooling_system
2 radiators water + hydraulic oil
Max._torque_/_Engine_rotation
174 Nm @1600 rpm
I.C._Engine_power_rating_/_Power_(kW)
57 Hp / 42 kW
Number_of_cylinders_/_Capacity_of_cylinders
4 - 2615 cm³
TRANSMISSION
Parking_brake
Automatic negative parking brake
Differential_lock
Limited slip differential on front axle
Transmission_type
Hydrostatic
Number_of_gears_(forward_/_reverse)
2 / 2
Max._travel_speed_(may_vary_according_to_applicable_regulations)
25 km/h
HYDRAULICS
Hydraulic_pump_type
Gear pump
Hydraulic_flow_/_Pressure
77 l/min - 235 bar
TANK CAPACITIES
Fuel_tank
60 l
Hydraulic_tank_capacity
70 l
NOISE AND VIBRATION
Vibration_on_hands/arms
< 2.50 m/s²
Noise_to_environment_(LwA)
104 dB
Noise_at_driving_position_(LpA)_tested_following_NF_EN_12053_norm
76 dB
MISCELLANEOUS
Controls
JSM
Safety_cab_homologation
ROPS - FOPS cab (level 1)
TECHNICAL SHEET
Name Link
Technical sheet Download
