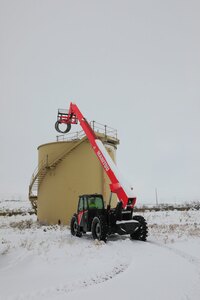

Manitou MTA 1242

Specifications

Model	MTA	Category Name	Equipment	Year	2025
Sale Type	New	Manufacturer	Manitou	Price	Contact for price CAD

Description

The new MTA Serie is designed to meet the needs of North American construction markets and rental sectors.

The MTA 1242: Strong performance with 12,000 lbs (5,443 kg) capacity and 127 HP Deutz engine with mid range boom lifting to 42' 6" (12.96 m) and reach to 28' 6" (8.68 m).

The new design also offers better visibility, comfort, performance, and a reduced total cost of ownership.

New cabin design for more comfort and visibility
Enhanced performance from combined hydraulic movements
Better TCO with robust, high quality components

CAPACITIES

Max._capacity

5443.10 kg

Max._outreach

8.69 m

Max._lifting_height

12.96 m

WEIGHT AND DIMENSIONS

Wheelbase

3.50 m

Tyres_type

Pneumatic

Overall_width

2.54 m

Tilt-up_angle

34 °

Overall_height

2.47 m

Overall_weight

12134 kg

Tilt-down_angle

96 °

Ground_clearance

0.48 m

Overall_cab_width

0.95 m

External_turning_radius

3.90 m

Frame_leveling_corrector

10 °

Forks_length_/_width_/_section

1219 mm x 152 mm x 63.50 mm

PERFORMANCES

Dump

6 s

Crowd

4 s

Lifting

16 s

Lowering

11 s

Extension

17 s

Retraction

12 s

ENGINE

Engine_norm

Tier 4 final

Engine_brand

Deutz

Engine_model

TCD 3.6 L4

Max._torque_/_Engine_rotation

500 Nm @ 2300 rpm

I.C._Engine_power_rating_/_Power_(kW)

127 Hp / 95 kW

Number_of_cylinders_/_Capacity_of_cylinders

4 - 3600 cm³

TRANSMISSION

Parking_brake

Hydraulic spring release SAHR

Service_brake

Wet disc brakes

Max._travel_speed

36.20 km/h

Transmission_type

Powershift

Number_of_gears_(forward_/_reverse)

5 / 3

HYDRAULICS

Hydraulic_pump_type

Axial piston

Hydraulic_flow_/_Pressure

151 l/min-275.80 bar

TANK CAPACITIES

Fuel_tank

144 l

Engine_oil

8.51 l

Hydraulic_oil

143.80 l

DEF_tank_capacity

15.14 l

MISCELLANEOUS

Drive_wheels_(front_/_rear)

2 / 2

Steering_wheels_(front_/_rear)

2 / 2

TECHNICAL SHEET

Name	Link
Technical sheet	Download
