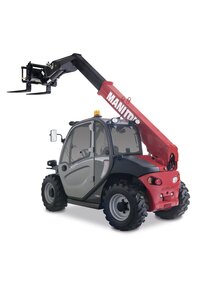

Manitou MT 420 H SKID

Listing image Listing image Listing image Listing image
Specifications

Model MT Category Name Equipment Year 2025
Sale Type New Manufacturer Manitou Price Contact for price CAD
Description

The MT 420 H super-compact telehandler is the smallest in the MT range. Ideal for construction and renovation, its exceptional compactness allows access through narrow entrances as well as confined spaces. Its turning radius and 3 steering modes (4WS/2WS/Crab) provide excellent maneuverability. The MT 420 H has a capacity of 4,400 lbs (2,000 kg) at 14 ft. 3 in. (4.3) m, giving it a high performance load chart. The 56 hp (42 kW) engine and 2-speed hydrostatic transmission has the power to reach 15.5 mph (25 km/h). Another advantage is the simultaneous movements of the lift and extend functions that further increase productivity.

CAPACITIES
Max._capacity
2000 kg
Max._outreach
2.65 m
Max._lifting_height
4.35 m
Breakout_force_with_bucket
1886 daN
WEIGHT AND DIMENSIONS
Wheelbase
2.13 m
Tyres_type
Pneumatic
Overall_width
1.49 m
Tilt-up_angle
12 °
Overall_height
1.97 m
Overall_weight
4260 kg
Standard_tyres
Camso SKS-532 - 12 - 16.5-12PR
Tilt-down_angle
116 °
Ground_clearance
0.24 m
Overall_cab_width
0.80 m
Length_to_face_of_forks
8.37 m
Overall_length_to_carriage
3.64 m
Unladen_weight_(with_forks)
4190 kg
Forks_length_/_width_/_section
1200 mm x 125 mm x 45 mm
External_turning_radius_(over_tyres)
2.98 m
PERFORMANCES
Dump
2.70 s
Crowd
3.30 s
Lifting
5 s
Lowering
3.50 s
Extension
4.80 s
Retraction
3 s
ENGINE
Engine_norm
Stage V
Engine_brand
Kubota
Engine_model
2607-CR-E5
Drawbar_pull_(Laden)
2850 daN
Engine_cooling_system
Water
I.C._Engine_power_rating_/_Power_(kW)
57 Hp / 42 kW
Number_of_cylinders_/_Capacity_of_cylinders
4 - 2615 cm³
TRANSMISSION
Parking_brake
Automatic Negative Hand-brake
Service_brake
Disk brake on the cadran shaft
Max._travel_speed
24.90 km/h
Transmission_type
Hydrostatic
Number_of_gears_(forward_/_reverse)
2 / 2
HYDRAULICS
Hydraulic_pump_type
Gear pump
Hydraulic_flow_-_Pressure
77.40 l/min-235 bar
TANK CAPACITIES
Fuel_tank
60 l
Engine_oil
10.20 l
Hydraulic_oil
70 l
Hydraulic_tank_capacity
10.20 l
NOISE AND VIBRATION
Vibration_on_hands/arms
< 2.50 m/s²
Noise_to_environment_(LwA)
104 dB
Noise_at_driving_position_(LpA)
76 dB
MISCELLANEOUS
Controls
JSM
Drive_wheels_(front_/_rear)
2 / 2
Steering_wheels_(front_/_rear)
2 / 2
Safety_/_Safety_cab_homologation
Standard EN 15000 / ROPS - FOPS cab (level 1)
